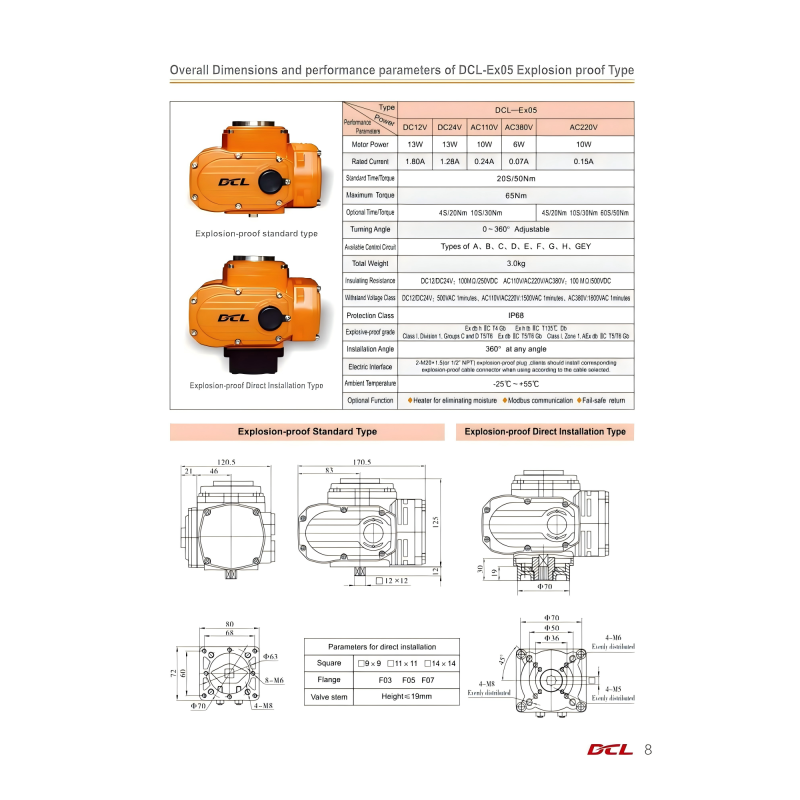

CSA ATEX IP68 DC12V 100Nm Explosion Proof Quater-turn Valve Actuator

• Turning angle ≤360° adjustable with electric limit switches
• Explosion proof grade ExdIICT4 for Zone system and Group C, D T4 for Division system
• Stainless steel visual valve position indicator with 10mm tempered glass lens
• Hard die cast aluminum alloy enclosure to resistance to high explosive pressure inside
• Heavy duty fully enclosed squirrel-cage asynchronous motor with fire treatment
• Manual override with Allen handle/handwheel optional
• Double lip skeleton oil seal and O-ring seal to ensure protection grade to IP68
• Standard ISO 5211 direct mounting
• Update:The DC12V power supply models DCL-Ex05, DCL-Ex10 and DCL-Ex20 have obtained CSA certification.

The full range of DCL explosion-proof electric actuators has obtained CSA certification.

The DCL-Ex10 explosion-proof electric actuator supports a maximum adjustable rotation angle of 360°, making it widely applicable in hazardous locations with flammable and explosive gases including ethylene and ethanol.

To secure reliable explosion-proof performance, the flameproof joint surfaces between housing covers and cylinder stops are precisely machined in full compliance with strict UL standards regarding flameproof gap dimensions and engagement lengths. Given the vital importance of machining precision, DCL adopts stricter internal dimensional tolerances than specified in UL criteria, and conducts comprehensive inspections on all actuator main bodies and covers before assembly.

This actuator is equipped with an in-house developed fully enclosed non-ventilated motor featuring high starting torque. Boasting an ultra-compact structure alongside superior heat dissipation design, it effectively controls motor internal temperature rise under heavy-load working conditions, keeping the outer shell surface temperature steadily below 135°C (275°F) and eliminating potential external ignition risks.
