CE/CSA Ultra Small Electric AC24VDC Quarter Turn Actuator

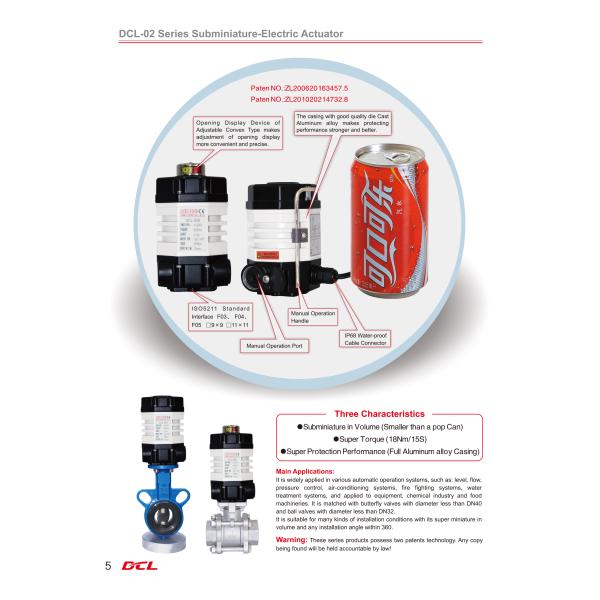

DCL-02 dimension and parameters.pdf

• Quarter turn standard, turning angle smaller than 360° optional
• Rare earth material permanent magnet brush motor, perfect robustness, very low temperature rise during operation
• Watertight housing cover with IP67 grade for indoor and outdoor use
• Two more limit switches to confirm valve position
• Self-locking when power off
• Strong gear train with soft nitriding metal gears
• Manual operation with handle
• CE marked/RoHS 3 tested/CSA listed

DCL-02G is widely applied in high-security industrial environments where 24VDC or 12VDC safety power supply is required. The low-voltage design effectively eliminates the risk of ensuring maximum safety for on-site personnel.

The actuator is equipped with a rare-earth permanent magnet motor, delivering significantly stronger magnetic flux compared to conventional ferrite magnet motors. This enables higher torque output within a more compact structure, achieving superior power density.

In addition, the motor is engineered for exceptional load stability. Unlike typical DC motors, which experience speed reduction under heavy load or overspeed under light load, the DCL-02G maintains stable operating speed even under fluctuating load conditions. This ensures smooth valve control, minimal vibration impact, and remarkably low temperature rise during operation.

The result is reliable, efficient, and safe performance in demanding applications.
